Main Diving System - Brasal Supporter
IMCA Compliant surface supplied Air diving System as listed below:

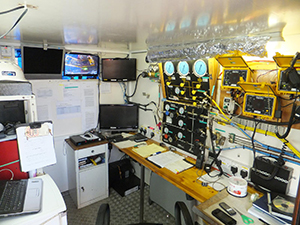

Dive Spread- Dive Control Container System, air-condition, p.a. system complete with two deck cams

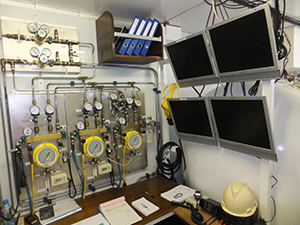

- Dive control panel for (3) three divers, independent air source and gas analyzing point
- O2 Analyzer Type Analox o2 portable
- (3) Independent communication boxes running of 220 and 12v back up.
- (3) Camera and light Systems, helmet and band masks mounted.
- (3) Independent hard drive systems to record Video and all communication of all divers
- (3) Diver umbilical type STS Twisted Type 150 meters each.

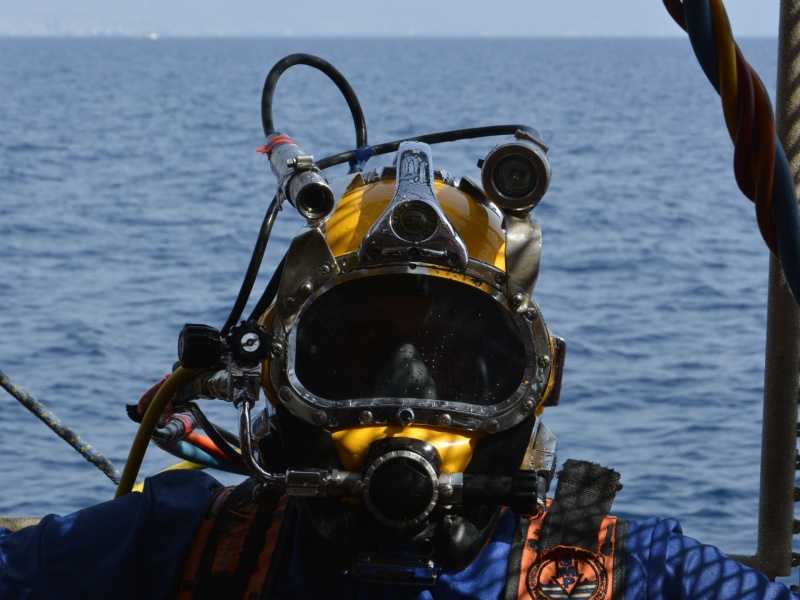

- (2) Helmet Type KM57
- (1) Helmet Type KM17K
- (1) Band Mask
- Large stock of spare parts maintained on board vessel.
- (3) 10 ltr Bailout cylinders with harnesses
Diver Deployment Systems
- Diver Deployment basket and Clump Weight
Decompression Chamber
- 1 Twin lock decompression Chamber
- Light, Coms, 2 o2 and pull internal bibs system for (4) four divers
- Compressor (2) Hp Air Compressor
- 1 for filling Chamber quads with Air
- 1 for filling Diving quads with Air on nitrox up to 40%
- Nitrox Stick for self-sufficient onboard Nitrox charging
- Chamber Stretcher and first aid kit
- (2)Portable Medical O2 sets.
Air Quads
- (2) Quads for diving of 8, 50 litter cylinder 200 bar
- (1) Quad for Chamber comprising of 12, 50 litter cylinders 200 bar
- (1) Quad for back up comprising of 6.50 litters Cylinders 200 bar
Power Tools
- Hydraulic Power Pack, 200 m of hoses, 1 hydraulic grinder type Stanley, 1 hydraulic brush type Stanley 1 hydraulic impact hammer
Observation ROV
- Mini ROV, Video Ray, 150 meters rated
----------
Diving System- Hydra
IMCA compliant surface supplied Air diving system as listed below
Dive Spread
- 20 foot container (with air conditioning)

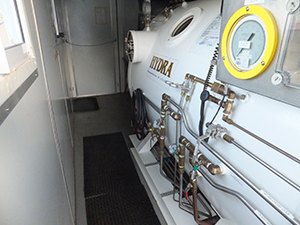

- twin lock decompression chamber
- Lights, comms, O2 bibs, O2 analyzing, back-up power etc’
- Dive control panel for (3) three divers, independent air source and gas analyzing point
- (3) Camera and light Systems, helmet and band masks mounted.
- 3 diver coms box
- Full sound and video recording system of all divers
- 3 x 150 meter divers umbilical’s twisted type
- 2 helmets kmb 57
- 1 band mask dsi 18
- Bail out cylinders and harness x 3
- Deck camera and monitor
- Large stock of spare parts and various items
Diver Deployment system

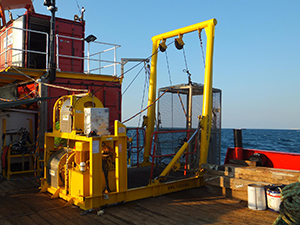

- 3 Diver deployment system basket (LARS)
Air Quads
- Air quad for diving and chamber use 6 x 50 lts for chamber and 6 x 50 ltr for diving
Tools
- Hydraulic tools and Broco
Compressor container
- 20-foot container with 2x HP compressors and 1xLP compressor with air receiver and work bench area with tools
----------
Diving Equipment Portable IMCA compliant surface supplied Air diving system as listed below
Dive Spread
- Dive control panel for 2 divers with coms box
- 2 camera and light systems with monitor’s
- Full sound and video recording of both divers
- 2 x 150 meter divers umbilical’s twisted type
- 1 x helmet km57
- 1 x band mask km 18
- 2 x 10 lts bailout with arvests
Air Quads
- Air quad for diving 4x50 lts and 18 lts available
